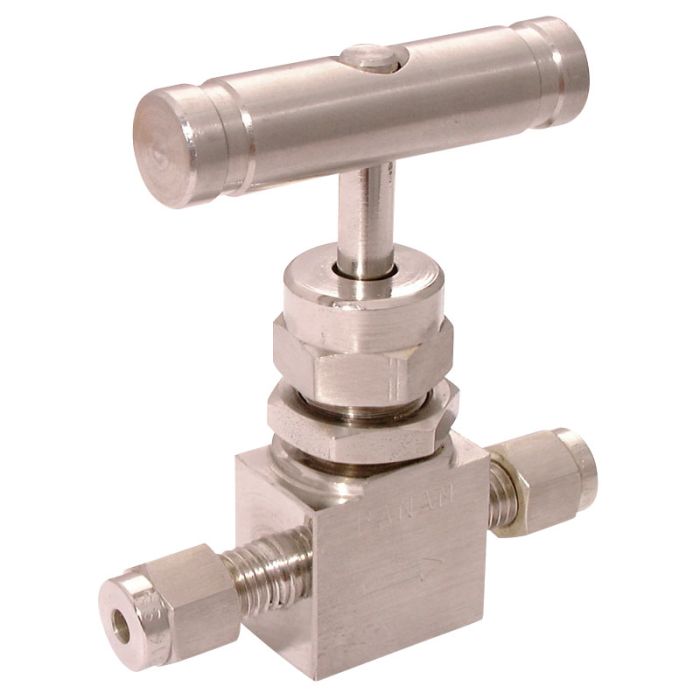

Stainless Steel Imperial Needle Valve - 6,000 psi Rated - 1/8" OD Compression

Stainless Steel Imperial Needle Valve - 6,000 psi Rated - 1/8" OD Compression

The "IB" series of needle valves are specially designed & manufactured for the use in corrosive & hazardous environments. These valves are for use in process control, instrumentation & flow control applications.

Feature benefits: One piece body construction for strength & safety. Non rotating Vee tip design, which forms a bearing joint with the stem eliminating and rotation between the plug & seat on closure ensuring long life.

Testing: All valves are 100% factory tested & complete traceability is available upon request.

Material: Body, Panel Nut, Washer & Gland Nut A479-316.

Stem: A479-316 / 17-4PH

Packing: Teflon

Grub Screw: Steel Plated

Handle: Stainless Steel

Vee Tip: A 564-630

Max Working Temperature: -29°C to +121°C

Working Pressure: 6,000 psi (400 bar)
